Glint & Glare: Avoiding late-stage surprises with PV and glass façades

By Nikolaos Protogeros, Technical Director, SRE

As solar photovoltaic (PV) installations and glass façades become more prevalent in UK architecture and energy infrastructure, understanding and proactively managing their reflective properties is becoming critical to planning success. This blog will guide developers, architects, and project managers through the importance of early Glint and Glare Assessment to prevent costly, late-stage surprises.

Whilst often used interchangeably, it is important to define what is meant by ‘glint’ and ‘glare’ as these describe distinct phenomena.

Glint is a momentary flash of bright light, typically experienced by a moving observer (like a driver or pilot) or from a moving reflector.
Glare is a continuous source of bright light, affecting a static observer (like a resident in their home).

Why Glint and Glare are a crucial UK planning consideration

In the UK, there's a growing recognition that solar reflections can have a significant impact on safety and amenity. Consequently, a Glint and Glare Assessment is increasingly a standard requirement for planning permission for both solar farms and buildings with significant glazing, potentially bringing costly delays if not addressed in sufficient detail at an early stage. Whilst there is currently no single, prescriptive piece of national legislation addressing this issue, an established body of best practice and guidance informs local authority decisions.

Key stakeholders and receptors of concern include:

Aviation safety: The Civil Aviation Authority (CAA) provides guidance on the potential impacts of solar developments on aviation. Reflections can pose a risk to pilots and Air Traffic Control (ATC) personnel, particularly during critical phases of flight like final approach. Assessments are often required for developments within several kilometres of an aerodrome.
Road and rail safety: Unexpected flashes of light can distract drivers and train operators, posing a significant safety hazard. Concerns are often raised for developments adjacent to major roads, motorways and railway lines, with stakeholders like National Highways and Network Rail becoming key consultees.
Residential amenity: Intense, prolonged glare can significantly impact the quality of life for neighbours, leading to strong community opposition and planning objections based on loss of amenity.
Ecological habitats: While less common, there are potential impacts on wildlife that may be considered as part of a comprehensive Environmental Impact Assessment.

Ignoring glint and glare: The risks

Saving glint and glare analysis to the latter stages of a project is a high-risk strategy. The potential consequences can be severe and wide-ranging:

Planning delays and refusals: Local authorities will not hesitate to delay or even refuse an application pending a satisfactory assessment. This is a common theme in RFI cycles, where planners require robust data before making a decision.
Costly redesigns: Identifying a significant glare problem after the design has been finalised can force expensive changes. This might mean altering the layout of a solar farm, affecting energy yield, or re-specifying an entire building façade, impacting aesthetic and budgetary goals.
Community opposition and legal challenges: Public complaints are a powerful force in the planning process. Real-world examples show how resident groups have successfully campaigned against developments due to glare concerns, sometimes leading to legal challenges.
Reputational damage: Projects bogged down in public disputes can attract negative press, damaging a developer's reputation and straining relationships with local authorities and communities, potentially impacting future projects.

Integrating Glint and Glare Assessment into your project lifecycle

The key to avoiding the pitfalls above is simple: address glint and glare early and often. By integrating analysis into the project lifecycle, potential issues can be identified and mitigated before they become problems.

Feasibility and concept design: This is the ideal time for an initial screening study. A high-level assessment can identify any major constraints, such as proximity to an airfield or a dense residential area, allowing the design team to make informed decisions from day one.
Detailed design: As the design progresses, a comprehensive geometric and intensity assessment should be conducted. This detailed modelling will pinpoint the exact locations, times and durations of potential reflections.
Planning application: The formal Glint and Glare Assessment report is submitted as part of the planning application. A robust, clear and comprehensive report gives the local authority the confidence it needs to approve the scheme, demonstrating that the issue has been thoroughly considered and addressed.

Early analysis allows mitigation to be woven seamlessly and cost-effectively into the project's design, rather than being an expensive and unwanted retrofit.

How glint and glare is assessed

A professional Glint and Glare Assessment is a highly technical analysis based on precise data. The methodology involves:

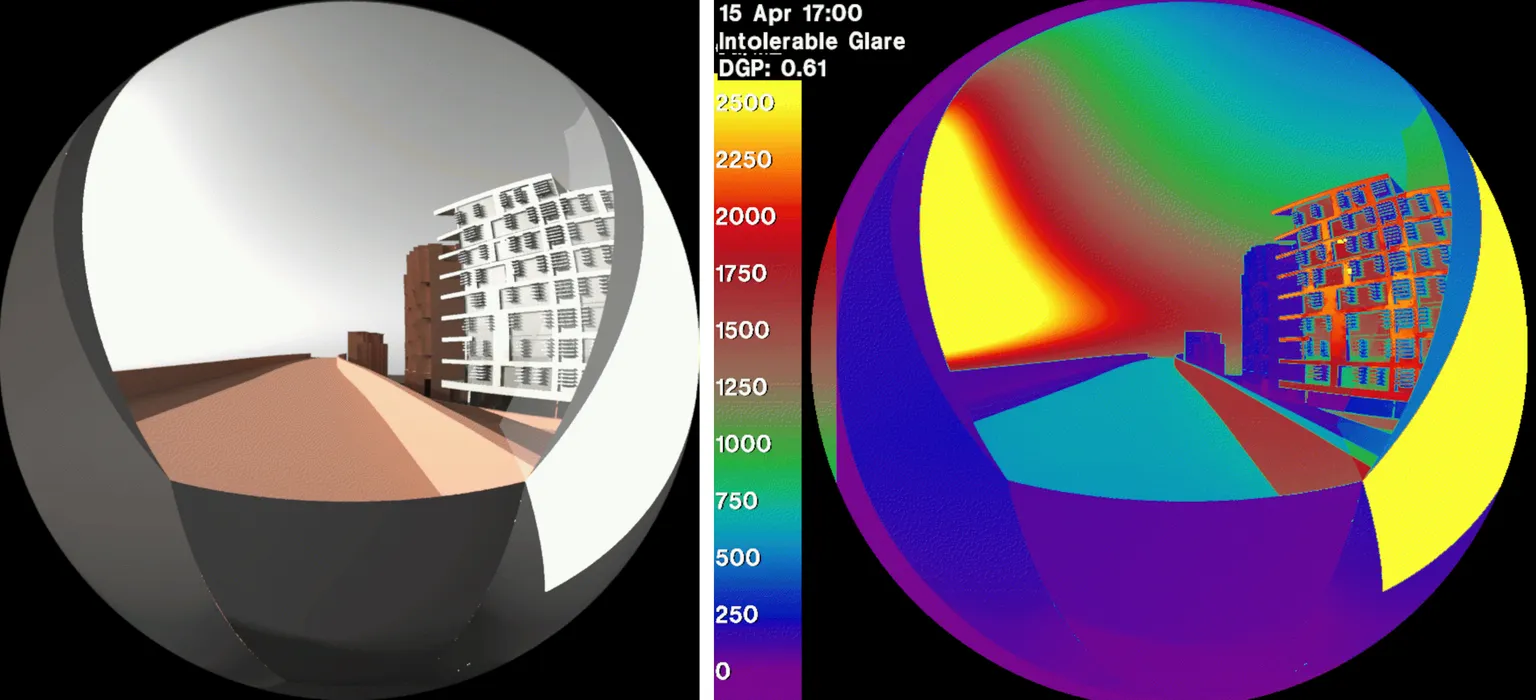

Computer modelling: Specialised software is used to build a 3D model of the proposed development, the surrounding terrain and key receptors (homes, roads, flight paths).
Solar Path Analysis: The model calculates the sun's position in the sky for every minute of the year. It then traces the path of reflections from every part of the solar panels or glass façade.

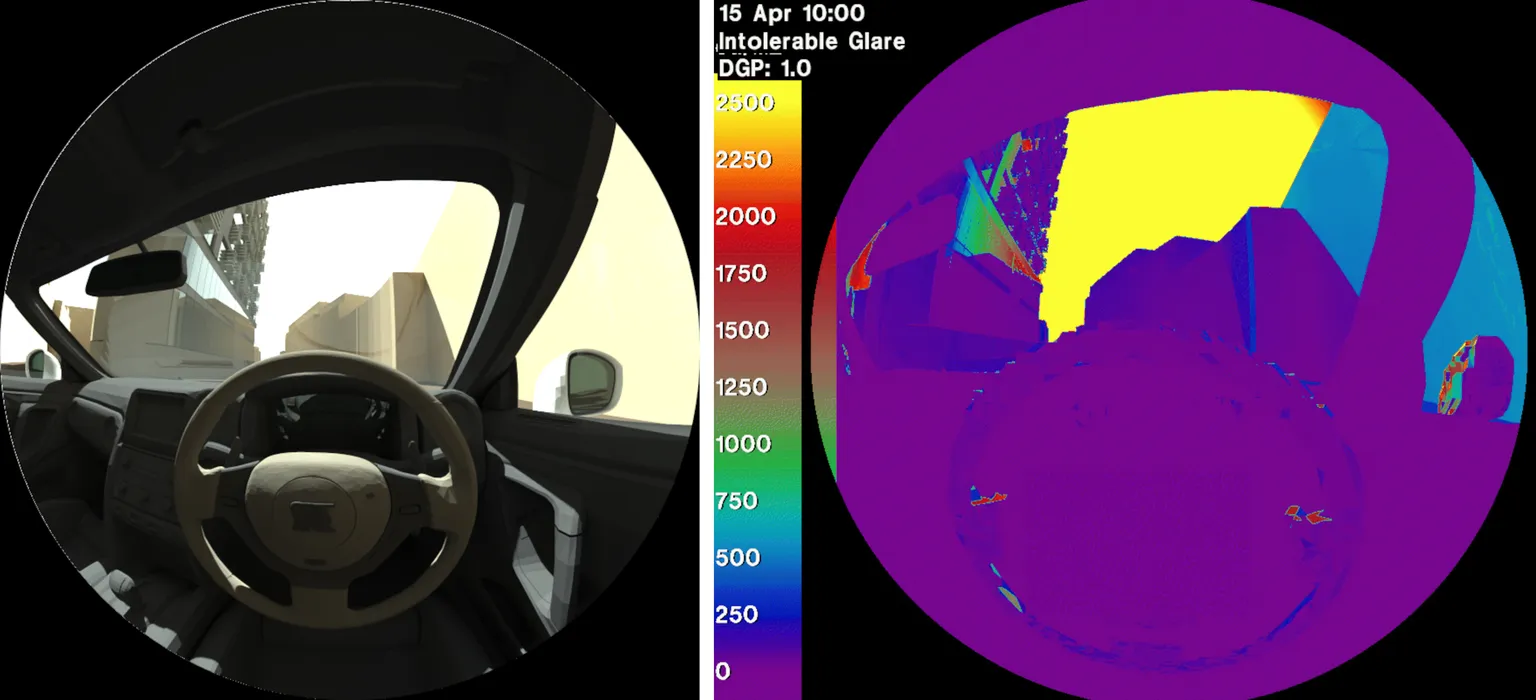

Impact identification: The software identifies precisely which receptors will be affected by reflections, at what times of day and for how long. This allows the impact to be quantified and assessed against established thresholds for safety and amenity.
Screening consideration: The model also accounts for existing and proposed screening from topography, buildings and vegetation, which can play a crucial role in mitigating impacts.

Effective mitigation strategies

Fortunately, a wide range of effective mitigation strategies is available.

For solar PV:

Optimising panel layout: Minor adjustments to the tilt and orientation (azimuth) of panels can redirect reflections away from sensitive receptors.
Utilising Anti-Reflective Coatings (ARCs): While solar panels are designed to absorb light, ARCs can further reduce the intensity of any reflection.
Strategic screening: Planting trees or installing earth bunds (embankments) can effectively block the path of reflections, particularly for ground-level receptors.

For glass façades:

Specifying lower-reflectivity glazing: Glass manufacturers offer a huge range of products. Modern anti-reflective glass can reduce light reflectance to as low as 1%.
Incorporating architectural features: Elements like fins, louvres, brise-soleil (sun breakers) and deep-set windows can be used to control reflections and manage solar gain.
Building Orientation and Form: Building shape and how its surfaces relate to the sun's path also need to be considered from the outset.

Turning a potential liability into a design opportunity

Glint and glare is no longer a niche technical issue; it is a fundamental aspect of site-responsive and considerate design in the UK. Treating it as an afterthought can cause delays, cost overruns and conflict.

A proactive Glint and Glare Assessment is a small investment that protects against significant project risks. By integrating this analysis into your early-stage planning, you can de-risk your project, foster positive community relations and ensure a smoother path to planning consent. Ultimately, considering the impact of reflections from the outset doesn't just avoid problems, it leads to better, more successful and more sustainable developments.
